When studying genetics and heredity, pedigree charts are essential tools used to track the inheritance of traits within a family. These charts provide a visual representation of family relationships and allow researchers to analyze the patterns of genetic inheritance. Understanding the symbols used in pedigree charts is crucial for interpreting the information they convey.
One of the most important aspects of a pedigree chart is the use of symbols to represent different individuals and their relationships. Each symbol conveys important information about an individual’s gender, affected status, and other key traits. By familiarizing yourself with these symbols, you can easily decipher the information presented in a pedigree chart.
Biology Pedigree Chart Symbols

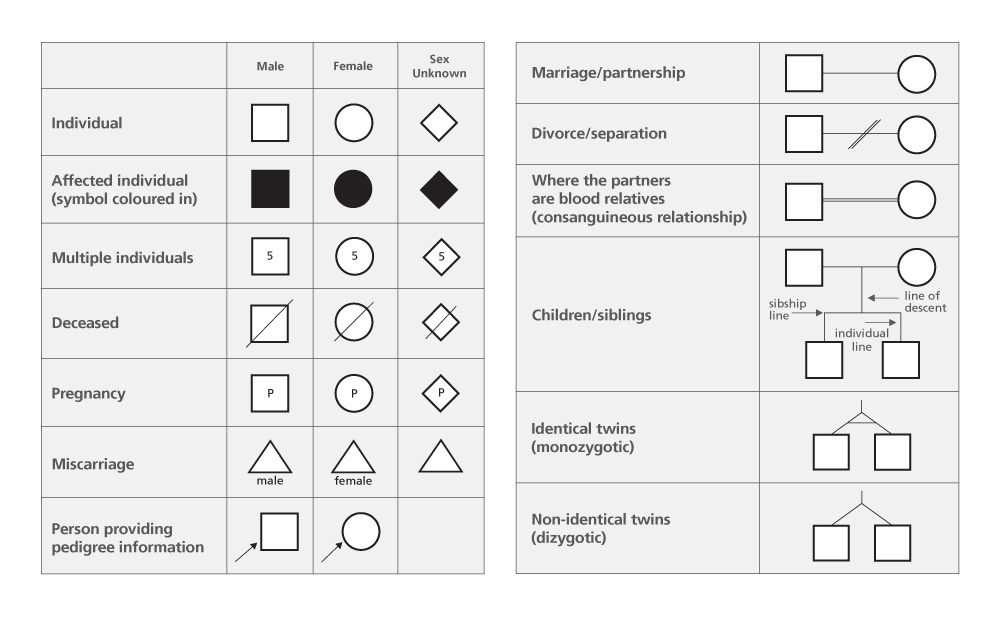

Key Symbols in Pedigree Charts
1. Square: A square symbol on a pedigree chart represents a male individual. The individual’s name is usually written inside the square, along with any additional information such as birthdate or other relevant details. If the square is shaded, it indicates that the male individual is affected by a particular trait or condition.
2. Circle: A circle symbol on a pedigree chart represents a female individual. Similar to a square, the individual’s name is typically written inside the circle, along with any necessary information. A shaded circle indicates that the female individual is affected by the trait or condition being studied.
Interpreting Pedigree Charts
3. Horizontal Line: A horizontal line connecting a male and a female symbol represents a marriage or partnership between the two individuals. Offspring are typically connected below the horizontal line, with lines extending downward to indicate their relationship to their parents.
4. Vertical Line: A vertical line extending downward from a mating pair represents their offspring. Each offspring is usually numbered or labeled to indicate their position in the birth order. Lines extending from the offspring connect them back to their parents, forming a clear lineage on the pedigree chart.
By understanding these key symbols in pedigree charts, you can effectively analyze and interpret the genetic information presented. Whether studying hereditary diseases, genetic traits, or population genetics, pedigree charts are invaluable tools for genetic research. Mastering the symbols used in pedigree charts will enhance your ability to navigate and interpret complex genetic relationships within families.

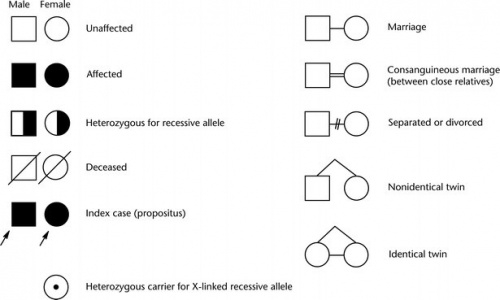

Download Biology Pedigree Chart Symbols

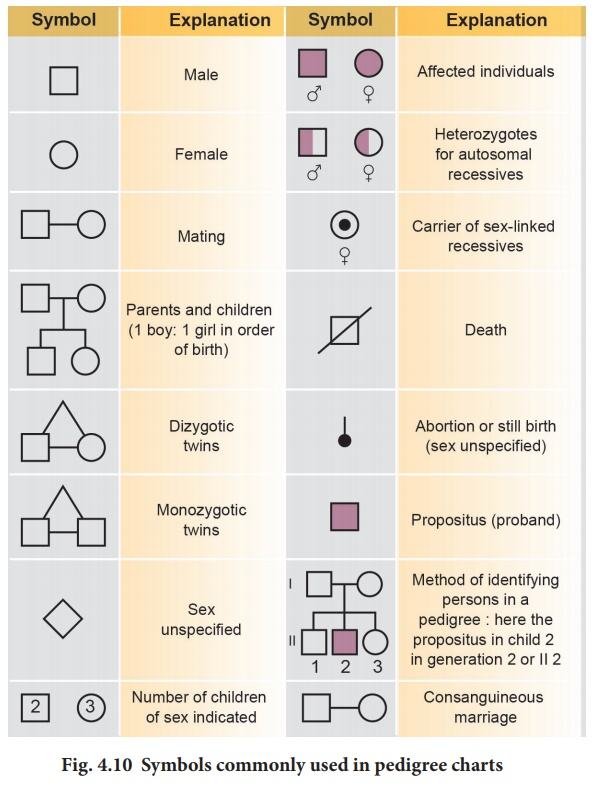

Pedigree Analysis Chart Definition Symbols Types Exam Vrogue co
Genetic Pedigree Symbols

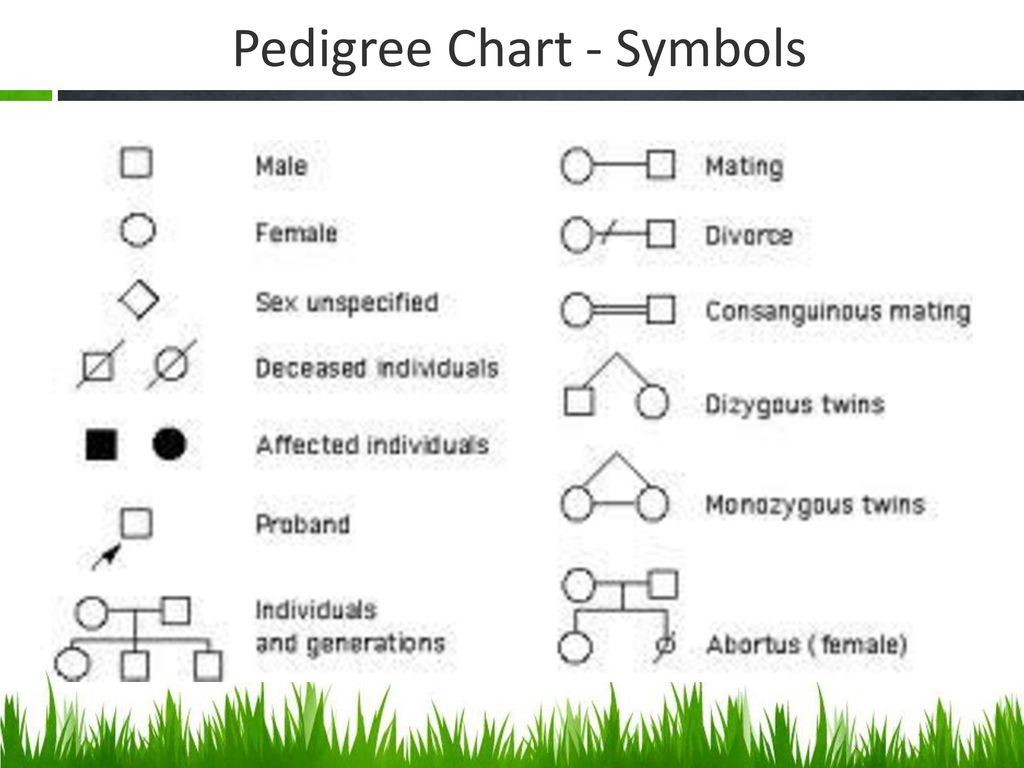

Mrs Stewart Biology Pedigree Charts Ppt Download

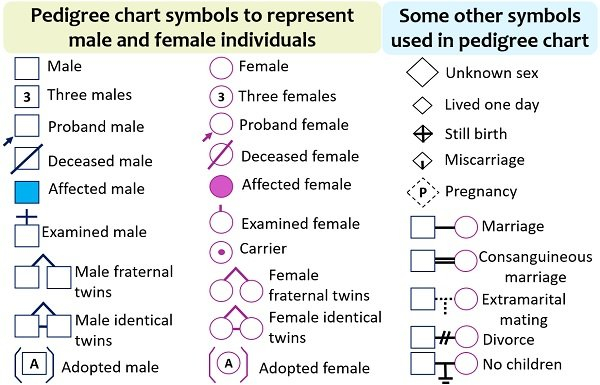

Pedigree Analysis Chart Definition Symbols Types Examples
